33ft x 40ft Container Shelter

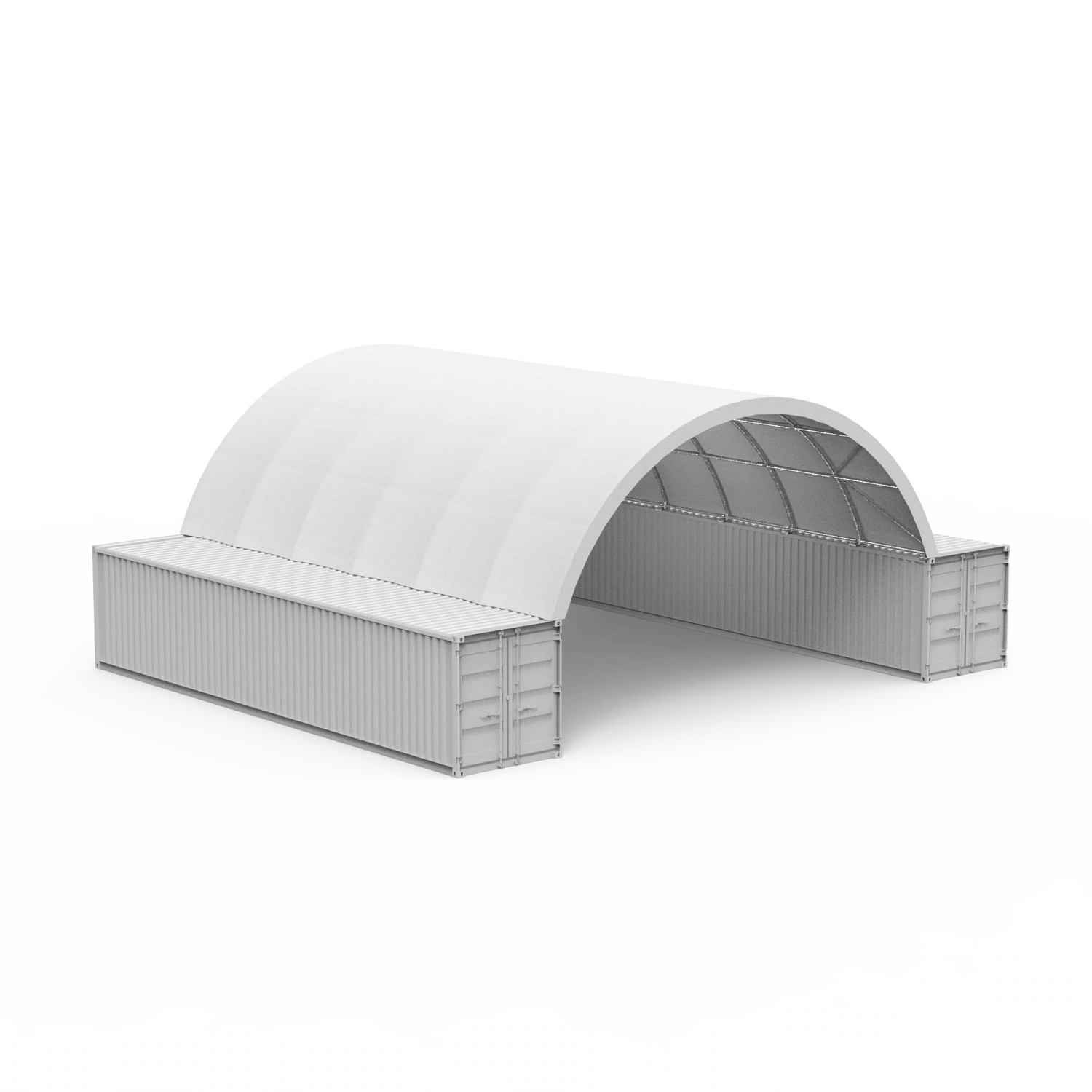

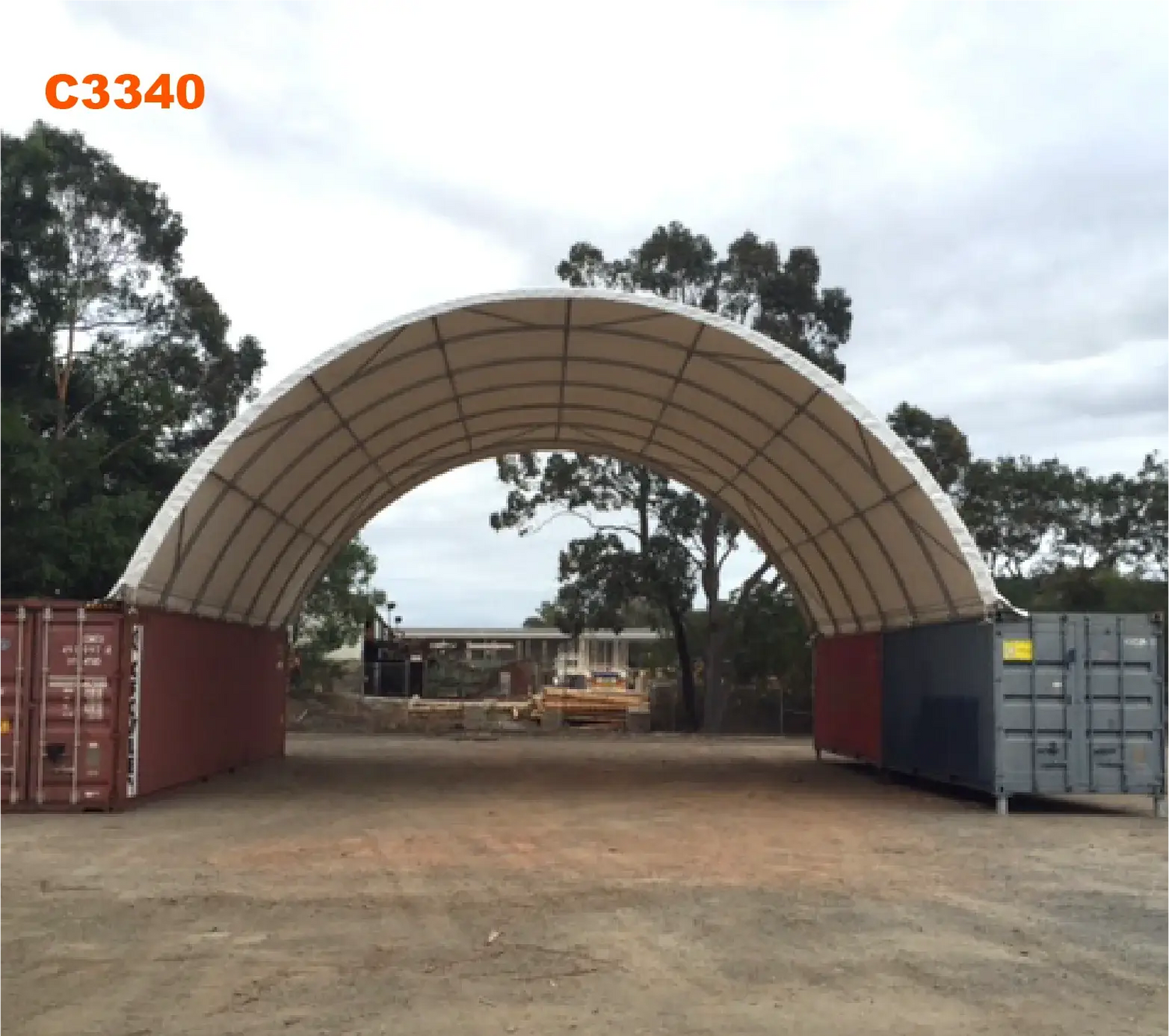

The 33ft x 40ft Container Shelter from Golden Marquees & Structures Ltd is an extra-wide, heavy-duty canopy system designed to create secure covered space between shipping containers. Engineered for industrial, agricultural and commercial environments across the UK and Ireland, it provides reliable protection for vehicles, machinery and stored goods in all weather conditions.
Manufactured with a robust hot-dip galvanised steel frame and heavy-duty PVC-coated polyester fabric, this container-mounted shelter is built for long-term performance. Supplied with base plates for welding directly to container edges, the structure offers a stable and durable covered bay once installed.
With increased width and height compared to smaller models, the 33ft x 40ft container shelter is ideal for larger vehicles, plant equipment and even light aircraft storage. Optional front and rear panels are available to create a more enclosed structure where required.
Key Features
- Heavy-duty hot-dip galvanised steel frame
- Prefabricated design for efficient installation
- Heavy-duty PVC-coated polyester canopy
- Designed for year-round, all-weather use
- 100% waterproof structure
- Flame-retardant and UV-protected fabric
- Self-cleaning PVC surface for reduced maintenance
- Frame lifespan up to 15 years (subject to conditions)
- Fabric lifespan typically 7–10 years depending on environment
- Optional front and rear panels available

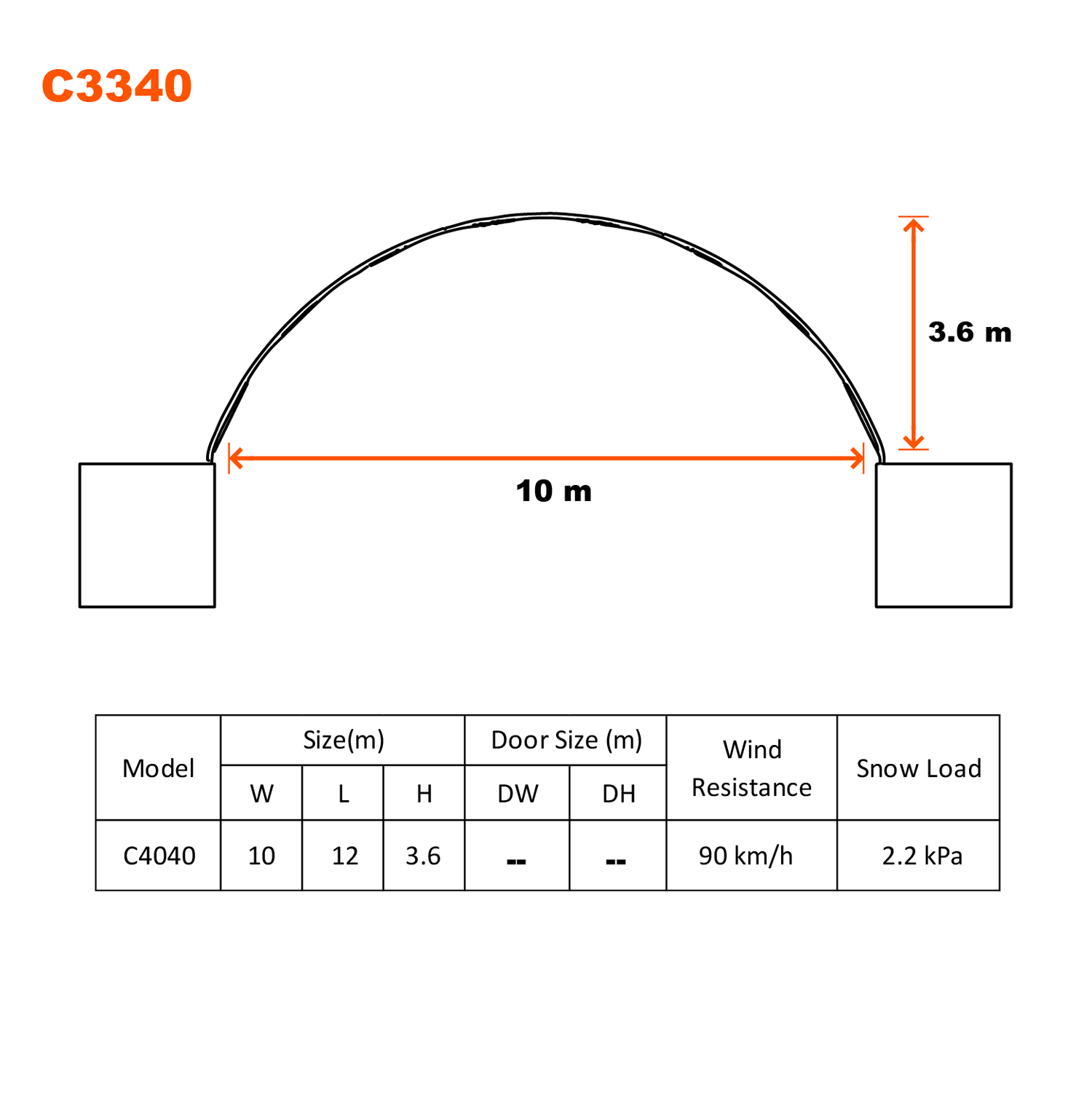

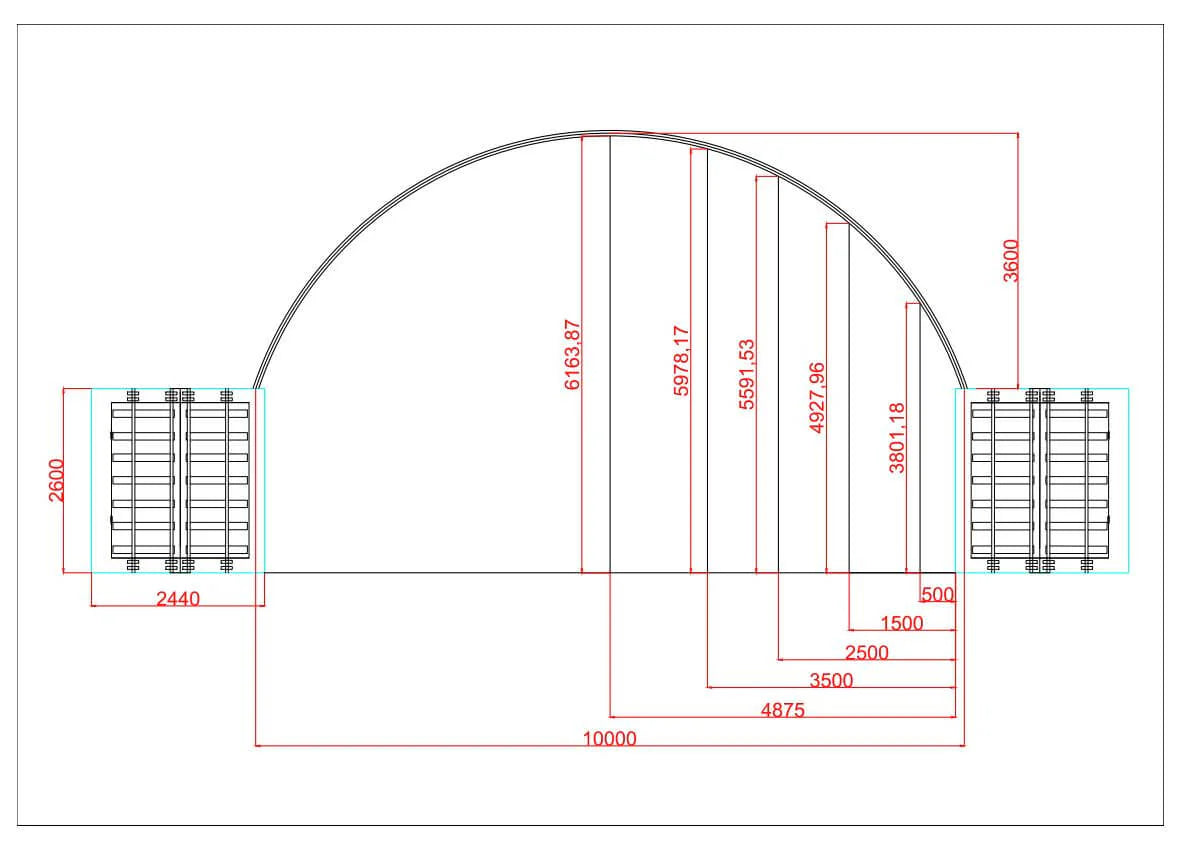

Technical Specifications
| Specification | Details |
|---|---|
| Model Code | C3340 |
| Width | 10.00 m (33 ft) |
| Length | 12.00 m (40 ft) |
| Overall Height | 3.60 m |

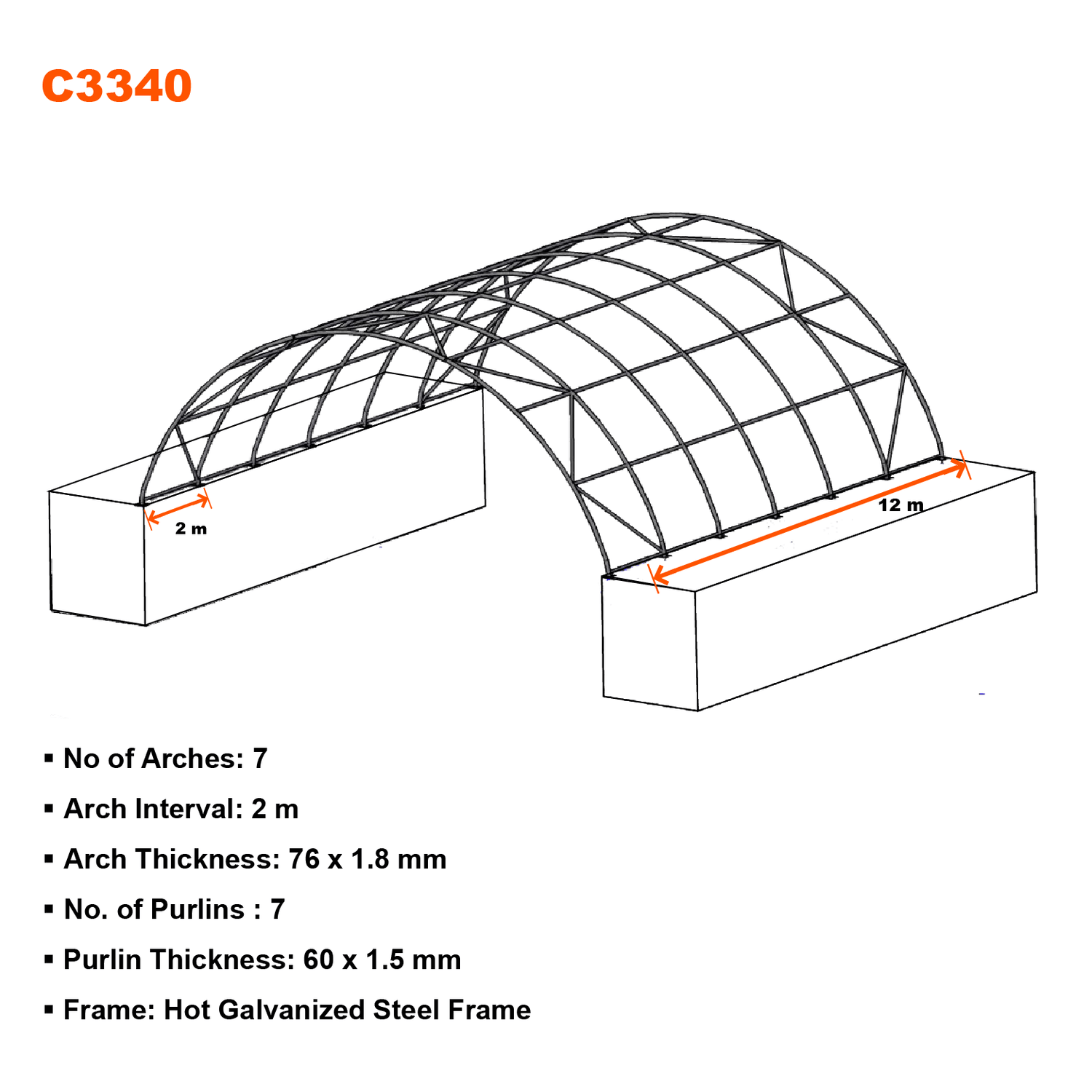

| Arch Spacing | 2.00 m |
| Arch Tubes | 76 × 1.80 mm |
| Purlin Tubes | 60 × 1.50 mm |
| Snow Load Capacity | 2.28 kPa |
| Wind Load Rating | Up to 90 km/h |
| Packed Size (W × L × H) | 0.75 × 2.82 × 0.82 m |
| Installation Requirement | Welding required (base plates supplied) |
Advantages & Common Use Cases
Advantages
- Cost-effective alternative to permanent yard structures
- Maximises unused space between containers
- Prefabricated system for quicker installation
- Durable materials designed for long-term outdoor use
- Low maintenance and easy to manage
Common Applications
- Industrial and agricultural warehousing
- Construction site storage
- Aircraft hangar and light aviation shelter
- Vehicle and plant equipment protection
- Temporary operational space
- Inventory and overflow storage
Available Colours
This container shelter is available in:
- White
- Light Grey
- Dark Grey
- Grass Green
- Military Green
Installation & Safety Information
Each shelter is supplied with a comprehensive assembly and installation manual to support safe and correct setup.
Important: Welding is required for this model. Base plates are supplied for securing the canopy to the edge of the containers.
Safety Notes
- Read the instruction manual carefully before assembly and disassembly
- Keep canopy fabric clear of snow accumulation
- Dismantle in extreme weather conditions where necessary
- Keep the tarpaulin away from heat sources
- Retension the canopy once or twice per year
Most container shelters are considered temporary structures; however, we recommend confirming any local planning or compliance requirements with your council prior to installation.
Customisation
Optional front and rear panels are available for increased enclosure and weather protection. Custom configurations can be supplied on request and may involve additional cost and lead times.
