40ft x 40ft Container Shelter

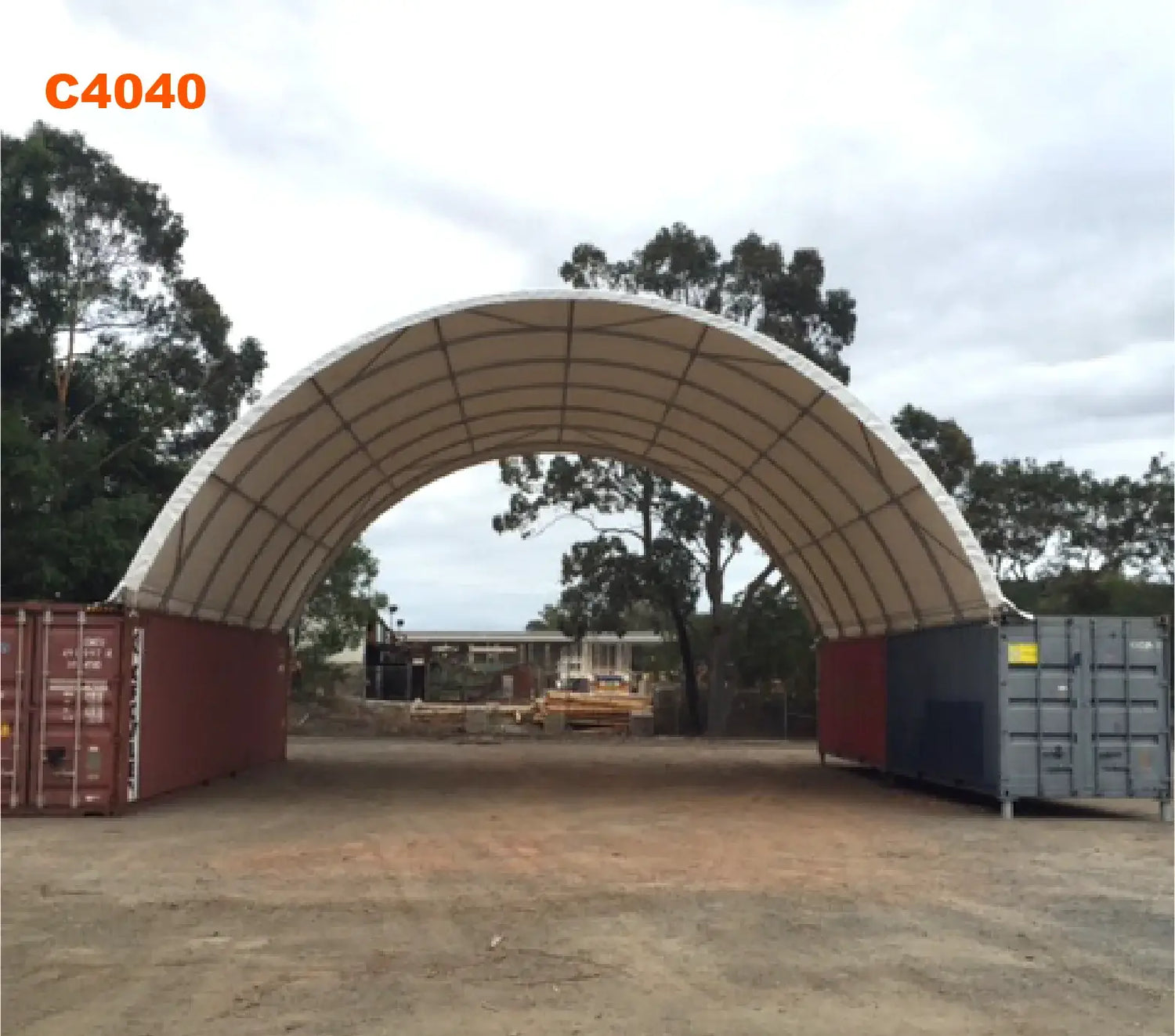

The 40ft x 40ft Container Shelter from Golden Marquees & Structures Ltd is a large-span, heavy-duty canopy system designed to create secure covered space between shipping containers. Ideal for industrial, agricultural and construction environments across the UK and Ireland, this model provides reliable protection for vehicles, machinery and stored goods in all weather conditions.
Constructed with a robust hot-dip galvanised steel frame and heavy-duty PVC-coated polyester fabric, the 40ft x 40ft container shelter is engineered for durability and long-term outdoor performance. Supplied with base plates for welding directly onto container edges, it forms a stable and secure structure once installed.
With increased width and internal height, this model is well suited to larger vehicles, plant machinery and even light aircraft storage. Optional front and rear panels are available to create a more enclosed solution where required.
Key Features
- Heavy-duty hot-dip galvanised steel frame
- Prefabricated structure for efficient installation
- Heavy-duty PVC-coated polyester canopy
- Designed for year-round, all-weather use
- 100% waterproof construction
- Flame-retardant and UV-protected fabric
- Self-cleaning PVC surface for reduced maintenance
- Frame lifespan up to 15 years (subject to environment)
- Fabric lifespan typically 7–10 years depending on conditions
- Optional front and rear panels available

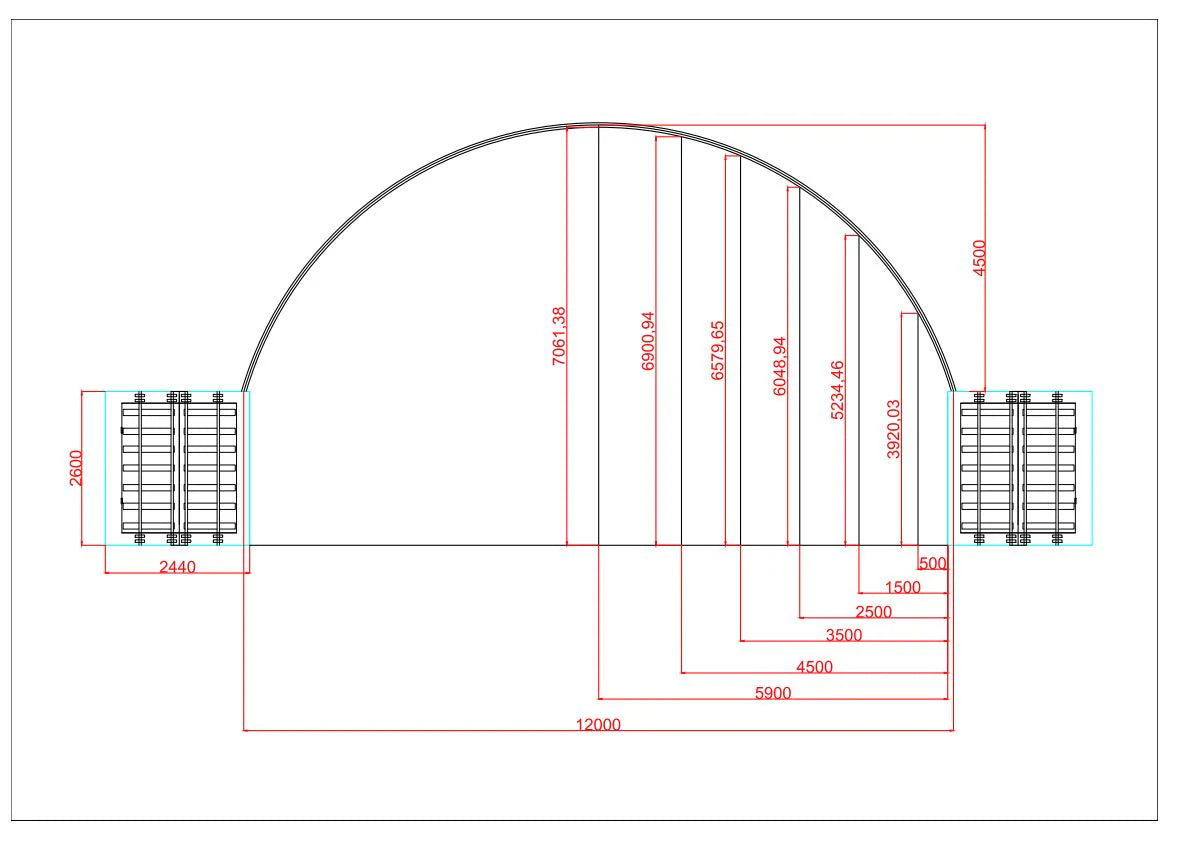

Technical Specifications
| Specification | Details |
|---|---|
| Model Code | C4040 |
| Width | 12.20 m (40 ft) |
| Length | 12.00 m (40 ft) |
| Overall Height | 4.50 m |

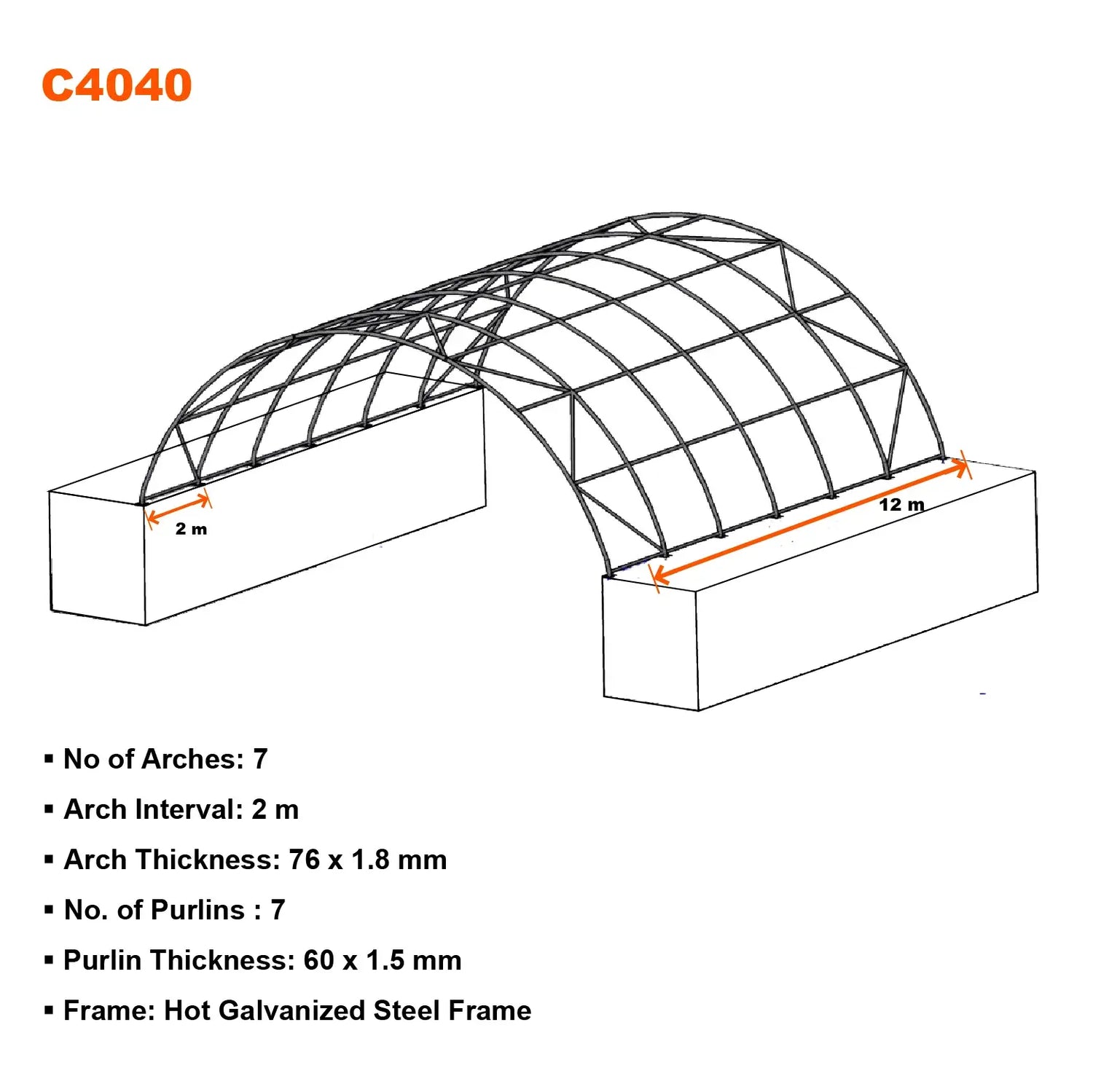

| Arch Spacing | 2.00 m |
| Arch Tubes | 76 × 1.80 mm |
| Purlin Tubes | 60 × 1.50 mm |
| Snow Load Capacity | 2.28 kPa |
| Wind Load Rating | Up to 90 km/h |
| Packed Size (W × L × H) | 0.75 × 2.82 × 1.08 m |
| Installation Requirement | Welding required (base plates supplied) |
Advantages & Common Use Cases
Advantages
- Cost-effective alternative to permanent yard structures
- Maximises unused space between containers
- Prefabricated system for faster installation
- Durable materials designed for long-term outdoor use
- Low maintenance and easy upkeep
Common Applications
- Industrial and agricultural warehousing
- Construction site storage
- Aircraft hangar and light aviation shelter
- Vehicle and plant equipment protection
- Temporary operational space
- Inventory and overflow storage
Available Colours
The container shelter is available in:
- White
- Light Grey
- Dark Grey

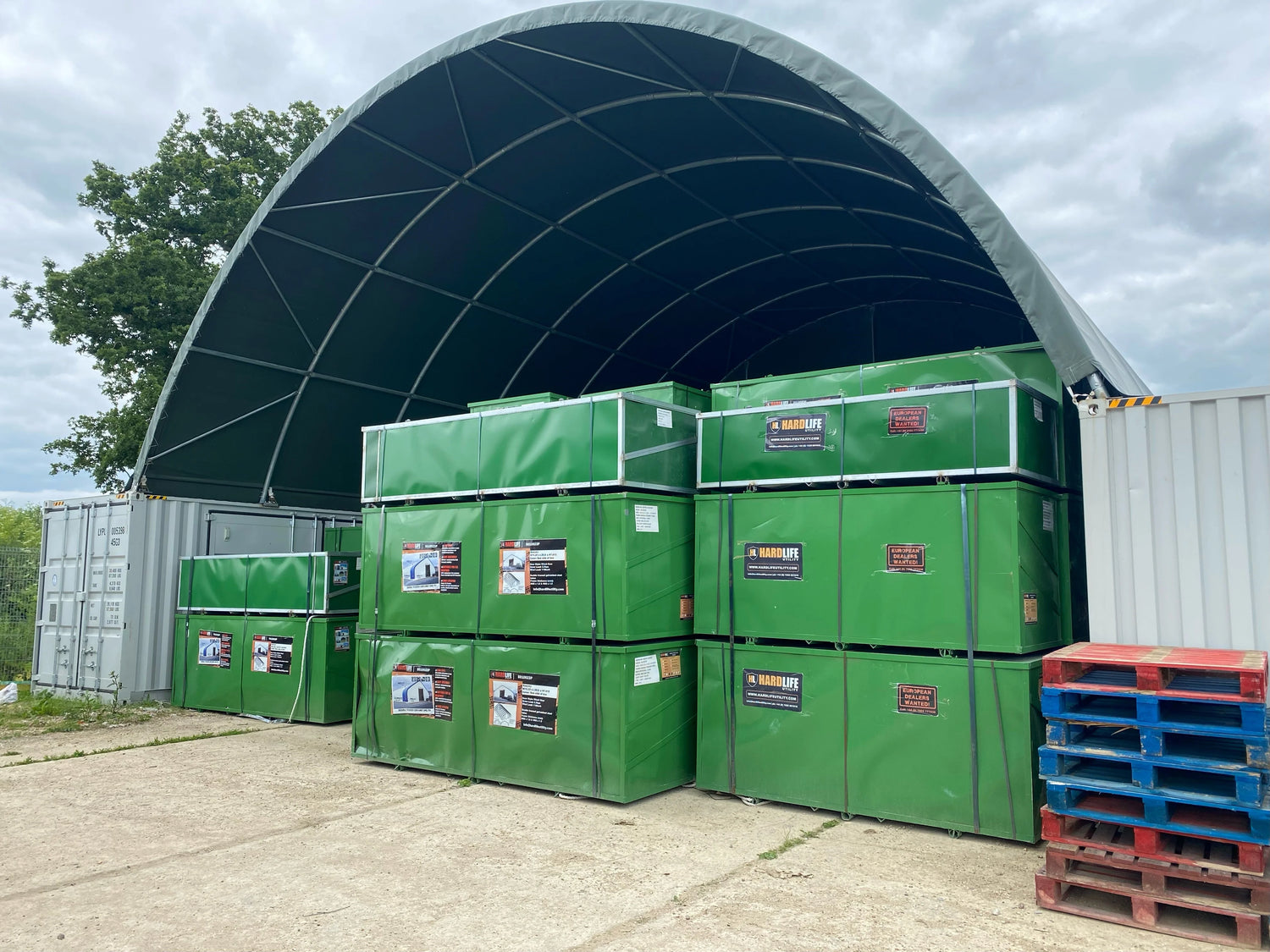

- Grass Green
- Military Green
Installation & Safety Information
Each shelter is supplied with a comprehensive assembly and installation manual to support safe and correct setup.
Important: Welding is required for this model. Base plates are supplied for securing the canopy to the edge of the containers.
Safety Notes
- Read the instruction manual carefully before assembly and disassembly
- Keep shelter fabric clear of snow accumulation
- Dismantle in extreme weather conditions where necessary
- Keep the tarpaulin away from heat sources
- Retension the canopy once or twice per year
These container shelters are commonly treated as temporary structures; however, we recommend confirming any local planning or compliance requirements with your council prior to installation.
Customisation
Custom container shelters, including optional front and rear panels, can be supplied on request. Bespoke options may involve additional cost and extended lead times.
