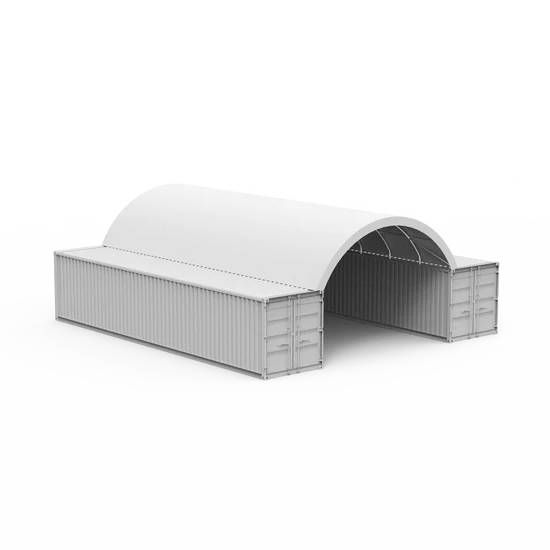

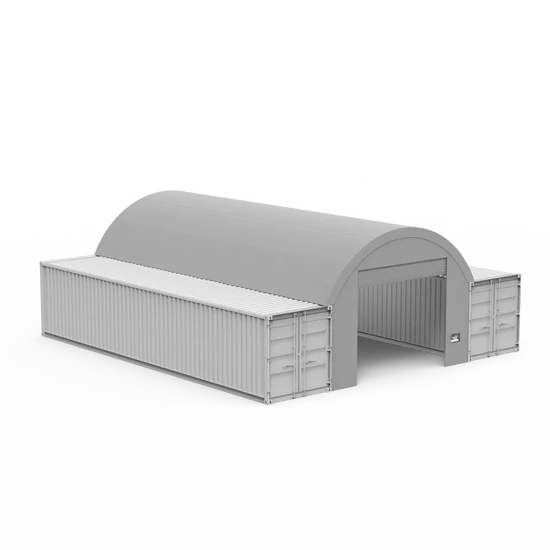

20ft x 40ft Container Shelter
The 20ft x 40ft Container Shelter from Golden Marquees & Structures Ltd is a durable, container-mounted canopy system designed to maximise protected storage space for industrial, agricultural and construction environments across the UK and Ireland.
Built with a hot-dip galvanised steel frame manufactured from high-grade steel tubing and supplied with a heavy-duty PVC-coated polyester cover, this shelter provides reliable protection against wind, rain and UV exposure. The extended 40ft (12m) length offers increased covered capacity, making it suitable for vehicle storage, machinery protection and operational overflow space.
The 20ft x 40ft model can be securely mounted to standard shipping containers using the supplied butterfly bolts and connector systems. It can also be installed on concrete lego blocks or alternative support structures. Optional front and rear panels are available to create enclosed or semi-enclosed configurations where additional weather protection is required.
Key Features
- Hot-galvanised, pre-fabricated steel frame for long-term durability
- Heavy-duty PVC-coated polyester fabric
- Designed for year-round, all-weather use
- 100% waterproof and UV protected cover
- Fire resistant and flame-retardant material
- Self-cleaning PVC surface reduces maintenance requirements
- Mountable to shipping containers or structural support systems
- Optional front and rear panels available
- Frame lifespan up to 15 years (subject to conditions)
- Fabric lifespan typically 7–10 years depending on environment

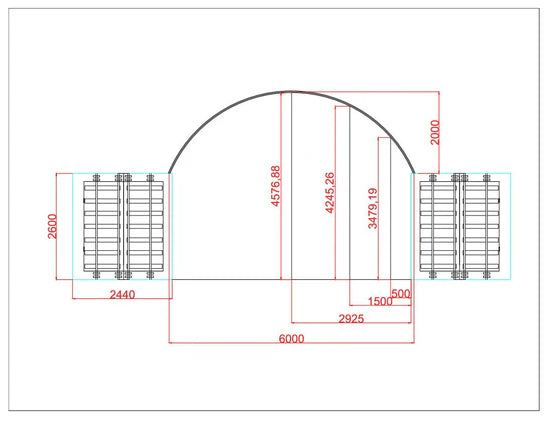

Technical Specifications
| Specification | Details |
|---|---|
| Model Code | C2040 |

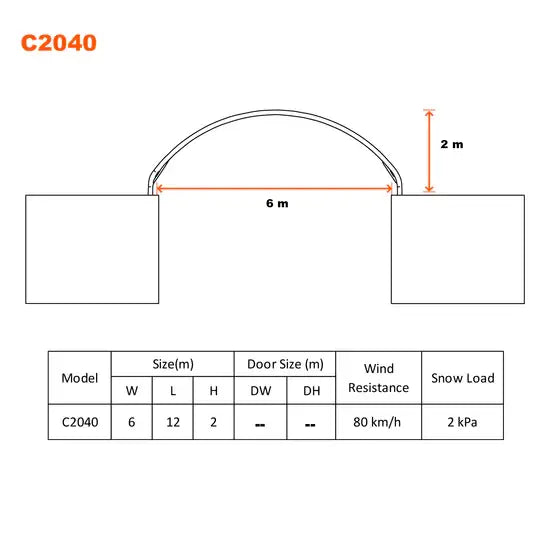

| Width | 6.00 m (20 ft) |
| Length | 12.00 m (40 ft) |
| Overall Height | 2.00 m |

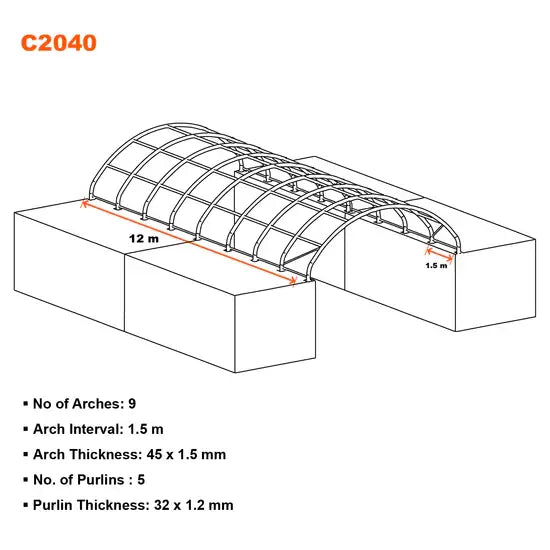

| Arch Spacing | 1.50 m |
| Arch Tubes | 45 × 1.50 mm |
| Purlin Tubes | 32 × 1.20 mm |
| Snow Load Capacity | 2.28 kPa |
| Wind Load Rating | Up to 80 km/h |
| Package Size (W × L × H) | 0.75 × 1.92 × 0.52 m |
Advantages & Common Applications
Advantages
- Cost-effective alternative to permanent covered structures
- Extended 40ft span for increased storage capacity
- Quick installation with minimal site disruption
- Relocatable and reusable system
- Pre-fabricated components for straightforward assembly
- Low ongoing maintenance requirements
Common Uses
- Industrial and agricultural warehousing
- Construction site storage
- Vehicle and machinery shelters
- Temporary operational shelters
- Office and inventory overflow space
- Container-mounted canopy solutions
Available Colours
This container shelter is available in:
- White
- Light Grey
- Dark Grey
- Grass Green
- Military Green
Installation & Safety Information
Each shelter is supplied with a comprehensive assembly and installation manual providing step-by-step guidance for safe setup and dismantling.
Important Safety Notes
- Read the instruction manual carefully before assembly and disassembly
- Keep the shelter fabric clear of snow build-up where applicable
- Dismantle in extreme weather conditions
- Keep fabric away from heat sources
- Retension the canopy once or twice per year
These shelters are relocatable and commonly treated as temporary structures. We recommend confirming any local planning or compliance requirements with your council prior to installation.
Customisation
Optional front and rear panels and alternative configurations are available on request. Custom specifications may involve additional cost and extended lead times.
